12" Deluxe Dovetail Jig

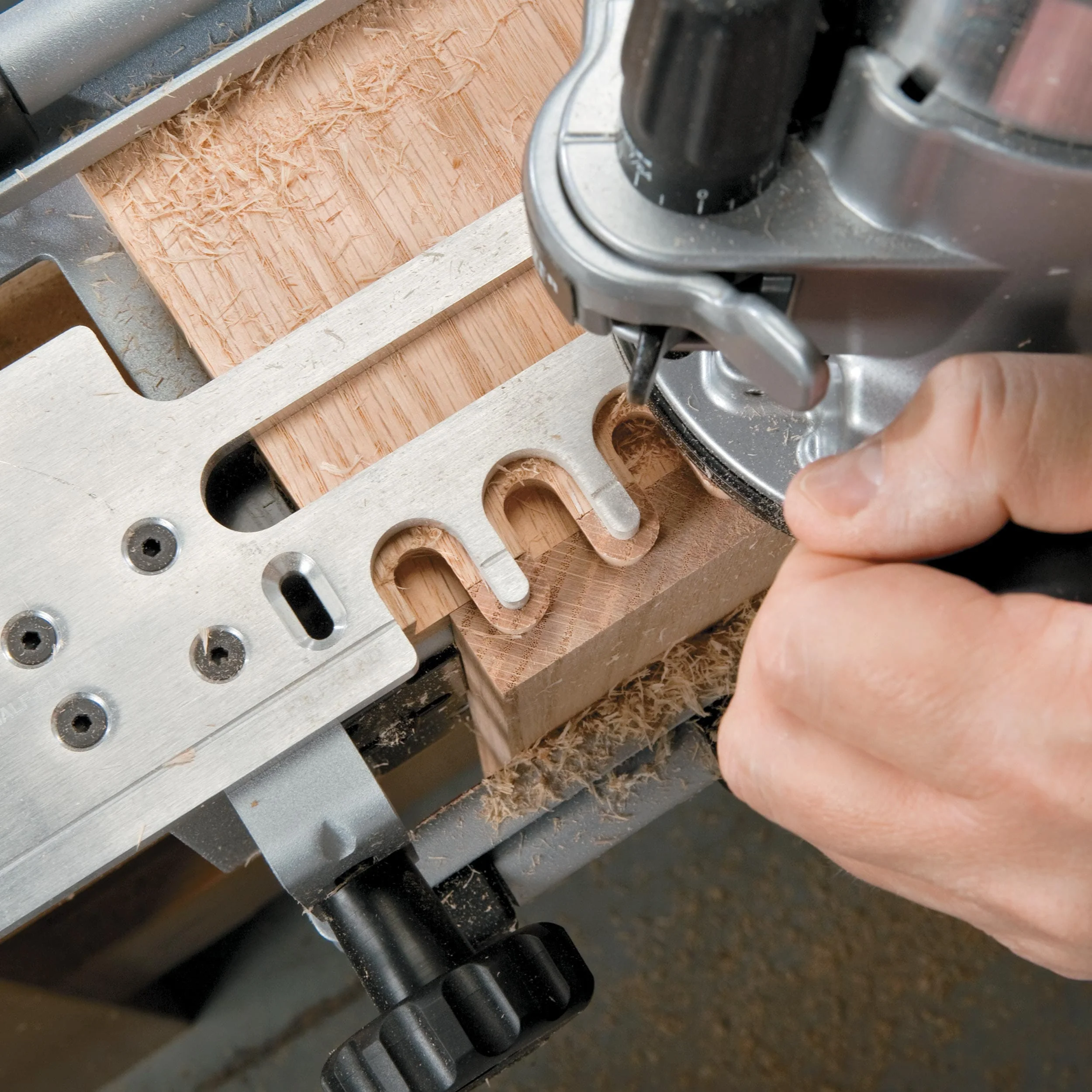

Porter Cable® Model 4212 — If you have put off cutting dovetails with your router because of the complicated set-up of dovetail jigs, wait no longer. Porter-Cable's 12" Deluxe Dovetail Jig will have you up and cutting dovetails in minutes. This jig is designed with patented alignment lines and a router bit depth stop so set-up is easy. Simply adjust the template so the alignment marks line up with your work piece, set your router bit depth according to the depth stop, and start routing.

Features:

• Ideal for woodworking, furniture and cabinet making, joinery for drawers and boxes
• Jig will cut half-blind dovetails, rabbeted half-blind dovetails and dovetail dadoes
• Template is CNC machined aluminum to provide superior accuracy
• Heavy-duty cam-type clamps with locking bars provide a solid grip for the wood
• Jig clamps or bolts directly to the work bench
• Patented alignment lines and router bit depth stop allow for quick, easy set-up

• Stock Width: Up to 12" wide
• Capacity in Wood (thickness): 1/4" - 1-1/8"
• Compatibility: For use with routers with 1/2" collet

• (1) Jig Base
• (1) Template 4211 for half-blind, rabbeted half-blind and sliding dovetails
• (1) Template 4213 for through dovetails and box joints
• (1) 7º carbide dovetail bit with 1/2" shank
• (1) 1/2" shank carbide-tipped straight bit
• (2) Template guides
• (2) Lock nuts
• (1) Wrench
• (1) Instruction manual
